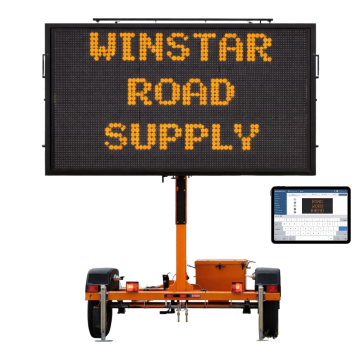

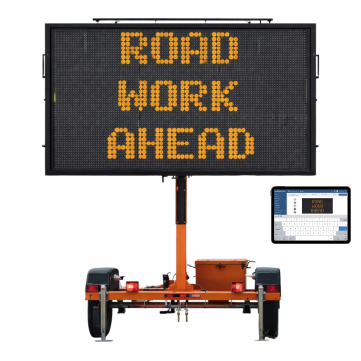

Winstar WRS-400MC Full-Size Matrix Portable Changeable Message Sign

Request a Trailer Quote

MSRP: $24,999.00

BUY AMERICAN ACT COMPLIANT* 🇺🇸

Winstar Road Supply is a trusted provider of professional traffic control and work-zone safety solutions, offering government-spec full-size portable changeable message signs engineered for maximum visibility, durability, and reliable operation in demanding field environments.

The Winstar WRS-400M GOV-SPEC model is built to meet strict federal procurement requirements and is designed for highway construction, municipal roadway projects, connected work zones, and special events requiring high-visibility portable traffic messaging.

Each Winstar WRS-400MC Full-Size Matrix PCMS is custom made to order. Please allow 3–4 weeks lead time.

Technical Specifications

Winstar™ WRS-400M GOV-SPEC Full-Size Matrix Portable Changeable Message Sign

Key Features

  • Full-size DOT-preferred full-matrix amber LED display
  • Meets federal dimensional and structural specifications
  • NTCIP-compliant touchscreen controller
  • Lifetime cellular & GPS service included
  • Heavy-duty steel trailer chassis construction
  • Solar-powered continuous operation design

Display & Messaging

  • Display Type: Full-Matrix Monochrome (Amber) LED Message Sign
  • Display Panel Size: 76" × 130"
  • Display Depth: 6"
  • Matrix Resolution: 28 × 48 pixels
  • LED Configuration: 4 LEDs per pixel
  • Default Character Size: 18" characters (5 × 7 pixel matrix)
  • Messaging Capability: Text, multiple fonts, symbols, and graphics
  • Rotation: 360° rotating display

Trailer & Mechanical Construction

  • Overall Length: 186"
  • Overall Width: 92"
  • Operating Height: 164"
  • Transport Height: 103"
  • Minimum Ground Clearance: 13"
  • Approximate Weight: 3,000 lbs
  • Axle: 3,500 lb rated, No Brakes
  • Coupler: 2" Ball Coupler
  • Frame Construction: 7 Gauge (3/16") CNC-formed steel plate and structural steel tubing
  • Main Structural Members: 3" × 5" × 3/16" structural steel tubing
  • Cross Members: 2" × 4" × 11 gauge tubing
  • Tongue Reinforcement: 45° diagonal bracing to front cross member
  • Stabilization: Four heavy-duty leveling jacks
  • Lift System: Electro-hydraulic lift system
  • Finish: Heavy-duty powder-coated steel

Power System

  • Primary Power: Battery / Solar Power System
  • Battery Configuration: Four (4) 6Vdc Heavy-Duty Deep Cycle Flooded Lead-Acid Batteries
  • Battery Compartments: Molded HMWPE (High Molecular Weight Polyethylene), Federal Safety Orange, UV stabilized
  • Spill Containment: Compartment fully contains potential battery spills
  • Lid Design: Auto-latching and padlock capable
  • Battery Chargers: Two (2) 45 Amp 115VAC 50/60 Hz Chargers
  • Solar Array: 270 Watt EZ-Fold Solar Array
  • Solar Operation: Continuous operation capable with solar array in flat horizontal position
  • Energy Efficiency: High-efficiency LED technology for extended runtime

Controller & Connectivity

  • Controller: NTCIP-Compliant Touchscreen Controller
  • User Interface: NTCIP Color LCD Interface
  • Message Control:
    • On-sign touchscreen programming
    • Near-sign wireless access
    • Remote web-based management
  • Cellular Connectivity: Integrated 4G LTE Modem
  • GPS: Integrated GPS Location Tracking
  • Cellular & GPS Service: Lifetime Service Included
  • Remote Monitoring: Message status, battery levels, diagnostics, GPS tracking

Applications

  • Highway construction and lane closures
  • Municipal and DOT roadway projects
  • Smart and connected work zones
  • Detours and emergency traffic management
  • Special events requiring long-distance legibility

Warranty

  • Electronic Components: 2-Year Warranty
  • Trailer Structure: 3-Year Warranty

BUY AMERICAN ACT COMPLIANT* This product is manufactured in the United States and intended to meet applicable Buy American Act domestic end product requirements. Final compliance may depend on project-specific contract documents, procurement rules, agency requirements, and any applicable exceptions or waivers.

*The product images shown may not be an exact representation of the product.
