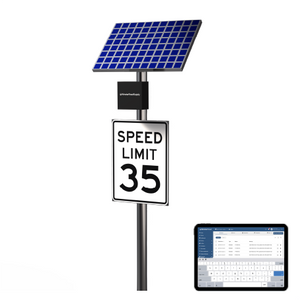

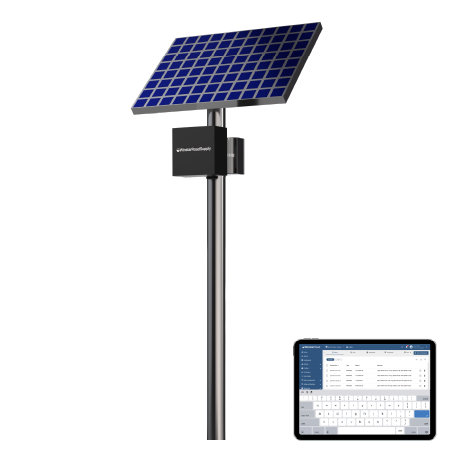

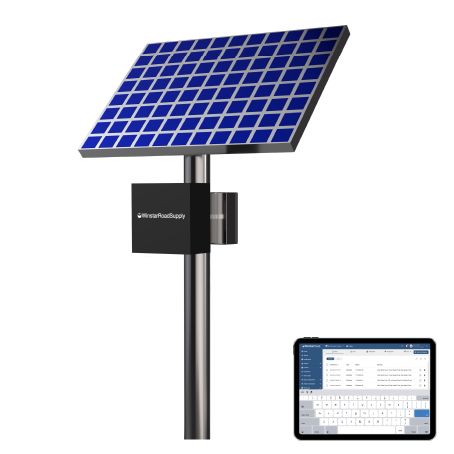

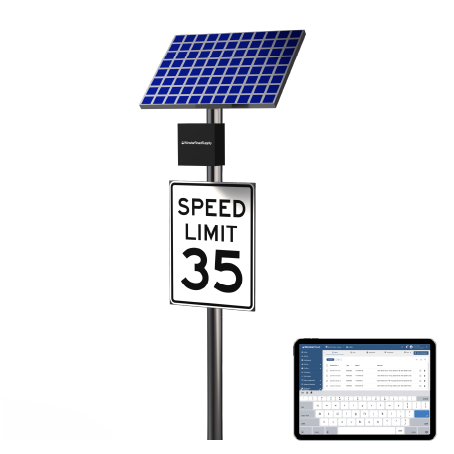

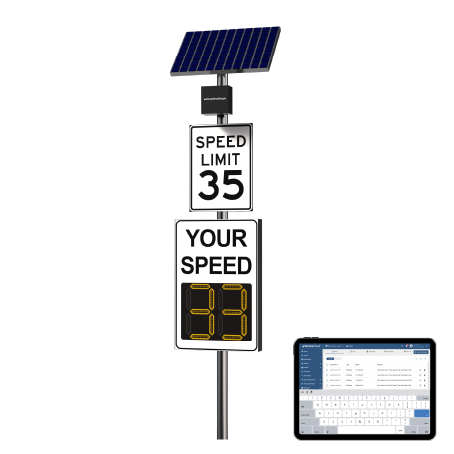

Winstar Municipal Speed Radar System

FREE US SHIPPING*

ASSEMBLED IN THE USA 🇺🇸

Winstar Road Supply is a leader in traffic safety solutions, offering advanced municipal speed radar systems engineered to make roads safer. Our mission is to provide reliable, all-weather monitoring solutions backed by professional US-based support.

The Winstar Municipal Speed Radar System uses Doppler Radar technology to measure and record vehicle speeds with precision across multiple lanes — day or night, in all weather conditions. Municipalities can configure the system for traffic studies, speed data gathering, and community safety initiatives, helping identify problem areas and support traffic-calming decisions. This system is fully upgradeable — allowing municipalities to start with speed detection today and later add camera traffic monitoring or license plate recognition (LPR) for full monitoring and enforcement.

With IP65-rated weather protection, AC or solar power options, and secure web-based control, this system delivers dependable results and long-term reliability for continuous traffic monitoring.

For best performance, we recommend A/C Wired power with a direct ethernet connection, installed by a Winstar Professional Installation Partner or a qualified local contractor. Please review our Recommended Installation Guide and Specifications.

Each Winstar Municipal Speed Radar System is custom made to order, please allow 1-3 weeks lead time.

Technical Specifications

Recommended Installation Guide

Winstar™ Municipal Speed Radar System

1 Year Free WinstarCloud Platform Subscription

1 Year Free 4G/5G Cellular Data Plan

Radar Sensor:

  • Doppler Radar With Onboard Signal Processing for Motion, Speed, Direction, and Range Reporting
  • Detection Range: 1–100 m (3–328 ft)
  • Speed Measurement Up to 560 km/h (348 mph)
  • Inbound/Outbound Detection
  • Range Reporting Up to 60 m (197 ft)
  • Beam Width: 20° Horizontal × 24° Vertical (-3 dB)
  • Power Consumption: 1.7 W Active, <0.2 W Hibernate
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)
  • Certifications: FCC/IC Modular Approval, CE Approved

Power Options:

  • A/C Wired

  • Battery / Solar (100W or 200W Panel, 12V 100Ah LiFePO₄ Battery with Built-In 100A BMS, 15,000+ Deep Cycles)

Communications:

  • Wi-Fi 802.11 b/g/n
  • GSM/Cellular 3G/4G/5G (2G Compatible)
  • Standard SIM Slot
  • 100 BASE-TX Wired Ethernet
  • Optional Starlink Satellite Internet
  • 1 Year Free 4G/5G Cellular Data Plan

Mechanical / Environmental:

  • Radar Enclosure: IP65 ABS (White/Gray or Black)
  • Control Enclosure: IP65 Galvanized Steel, 16"×12"×10", Thermostat & Fan-Controlled, White or Black Finish
  • Operating Temperature: -40°F to 185°F

WinstarCloud:

  • 1 Year Free WinstarCloud Platform Subscription
  • View, Export, and Monitor All Collected Data in Real-Time From Any Internet-Connected Device.

Warranty:

  • 2-Year System Warranty

  • 1-Year Battery Warranty

FREE US SHIPPING* Available within the continental United States. Additional shipping charges may apply for specific delivery locations or for Alaska, Hawaii, U.S. territories, or international destinations.

*The product images shown may not be an exact representation of the product.
