Winstar Community Speed Radar System

FREE US SHIPPING

Winstar Road Supply is a leader in traffic safety solutions, offering advanced community speed radar systems engineered to make roads safer and neighborhoods more livable. Our mission is to provide reliable, all-weather monitoring solutions backed by professional US-based support.

The Winstar Community Speed Radar System uses Doppler Radar technology to measure and record vehicle speeds with precision across multiple lanes day or night, in all weather conditions. Communities can configure the system for traffic studies, speed data gathering, and community safety initiatives, helping identify problem areas and support traffic-calming decisions. This system is fully upgradeable — allowing communities to start with speed detection today and later add camera traffic monitoring or license plate recognition (LPR) for full monitoring and enforcement.

With IP65-rated weather protection, AC or solar power options, and secure web-based control, this system delivers dependable results and long-term reliability for continuous traffic monitoring.

For best performance, we recommend A/C Wired power with a direct ethernet connection, installed by a Winstar Professional Installation Partner or a qualified local contractor. Please review our Recommended Installation Guide and Specifications.

Each Winstar Community Speed Radar System is custom made to order, please allow 1-3 weeks lead time.

Technical Specifications

Recommended Installation Guide

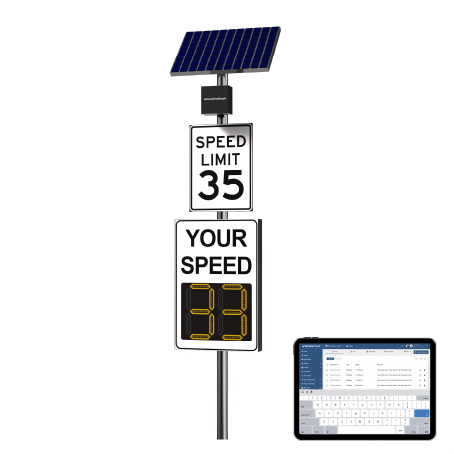

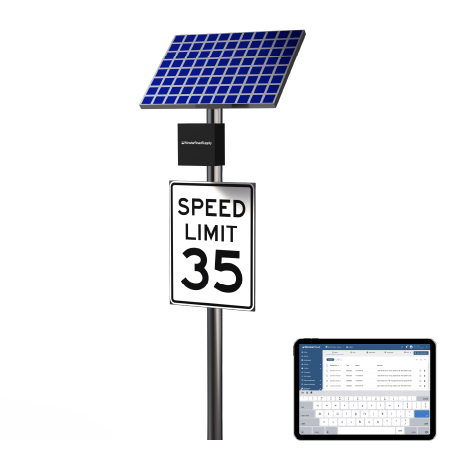

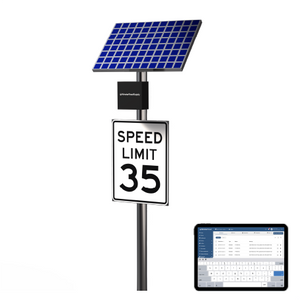

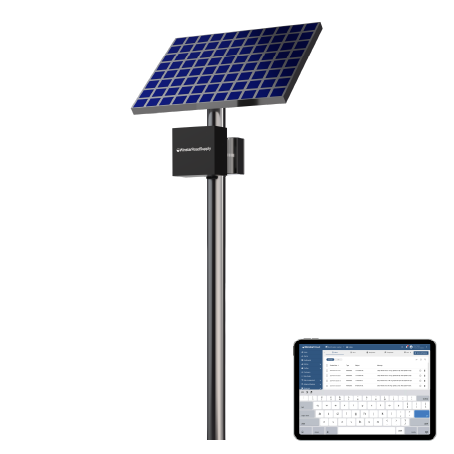

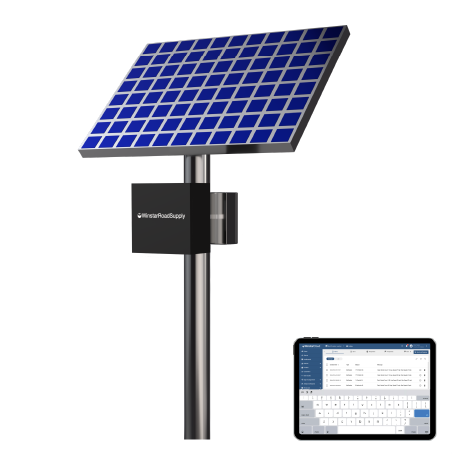

Winstar™ Community Speed Radar System

1 Year Free WinstarCloud Platform Subscription

1 Year Free 4G/5G Cellular Data Plan / Starlink Data Plan

Apple iPad 11" A16 (2025) Wi-Fi 128GB Included

Radar Sensor:

  • Doppler Radar With Onboard Signal Processing for Motion, Speed, Direction, and Range Reporting
  • Detection Range: 1–100 m (3–328 ft)
  • Speed Measurement Up to 560 km/h (348 mph)
  • Inbound/Outbound Detection
  • Range Reporting Up to 60 m (197 ft)
  • Beam Width: 20° Horizontal × 24° Vertical (-3 dB)
  • Power Consumption: 1.7 W Active, <0.2 W Hibernate
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)
  • Certifications: FCC/IC Modular Approval, CE Approved

Power Options:

  • A/C Wired

  • Battery / Solar (100W or 200W Panel, 12V 100Ah LiFePO₄ Battery with Built-In 100A BMS, 15,000+ Deep Cycles)

Communications:

  • Wi-Fi 802.11 b/g/n
  • GSM/Cellular 3G/4G/5G (2G Compatible)
  • Standard SIM Slot
  • 100 BASE-TX Wired Ethernet
  • Optional Starlink Satellite Internet
  • 1 Year Free 4G/5G Cellular Data Plan / Starlink Data Plan

Mechanical / Environmental:

  • Radar Enclosure: IP65 ABS (White/Gray or Black)
  • Control Enclosure: IP65 Galvanized Steel, 16"×12"×10", Thermostat & Fan-Controlled, White or Black Finish
  • Operating Temperature: -40°F to 185°F

WinstarCloud:

  • 1 Year Free WinstarCloud Platform Subscription
  • View, Export, and Monitor All Collected Data in Real-Time From Any Internet-Connected Device.

Warranty:

  • 2-Year System Warranty

  • 1-Year Battery Warranty
